9.52mm PCB Screw Terminal Block 300V 30A 2 - 16 Poles Green Color

9.52mm PCB Screw Terminal Block 300V 30A 2 - 16 Poles Green Color

Ürünler - PCB Vidalı Terminal Bloğu
  • Vurgulamak

    9.52mm PCB Screw Terminal Block

    ,

    PCB Screw Terminal Block 300V

    ,

    30A PCB Terminal Blocks

  • Saha
    9,52 mm
  • Renk
    Yeşil
  • Plastik
    PA66
  • Yanıcılık sınıfı
    UL94-V0
  • Vida
    M3
  • Soyma uzunluğu
    7-8 mm
  • terminal
    Pirinç
  • Kontak Direnci
    8 mΩ'dan az
  • Nominal dalgalanma gerilimi
    1 dakika içinde anormal bir şey yok.
  • Yalıtım Direnci
    DC500V'nin üstünde, 500MΩ
  • Menşe yeri
    Guangdong, Çin
  • Marka adı
    SCED
  • Sertifika
    CE,UL
  • Model numarası
    TJ952-00
  • Min sipariş miktarı
    500 Adet/Adet
  • Fiyat
    USD 0.051-0.12 Per Pole
  • Ambalaj bilgileri
    Standart Ana Karton Boyutu: 341 x 273 x 198 mm
  • Teslim süresi
    5-20 iş günü
  • Ödeme koşulları
    T/T, L/C
  • Yetenek temini
    Aylık 1000000 Kutup/Kutup

9.52mm PCB Screw Terminal Block 300V 30A 2 - 16 Poles Green Color

Fiyat Al Şimdi başvurun

9.52mm PCB Screw Terminal Block 300V 30A 2-16 Poles Green Color M3



Detailed product Description:



Pitch 9.52mm, 300V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors can be also available, please refer to below How to Order and select the color you want.



How to order:

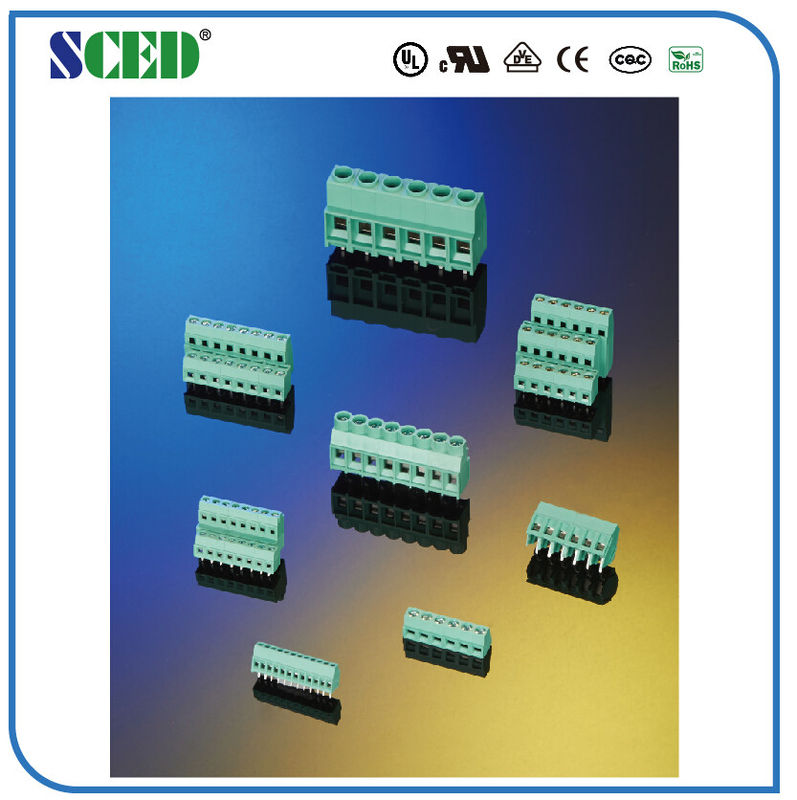

9.52mm PCB Screw Terminal Block 300V 30A 2 - 16 Poles Green Color 0

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30 300 / 30
Wire Range AWG 10-30 10-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 30 1000 / 30 1000 / 30
Rated Surge Voltage KV 6 8 6
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3





Applications:



1. Automation, PCB, Medical Equipment

2. Industrial Control, Security, Power Supply

3. Serve Site, Switch, Rail Transportation

4. Communication, Electric Lighting, Frequency Converters

5. Elevator and CCTV and so on.



Competitive Advantage:



  1. Years of experience in designing and manufacturing
  2. More than 1000 models for selection
  3. OEM and ODM service
  4. Quick delivery
  5. Good after-sales service
  6. Stable high quality
  7. Competitive price

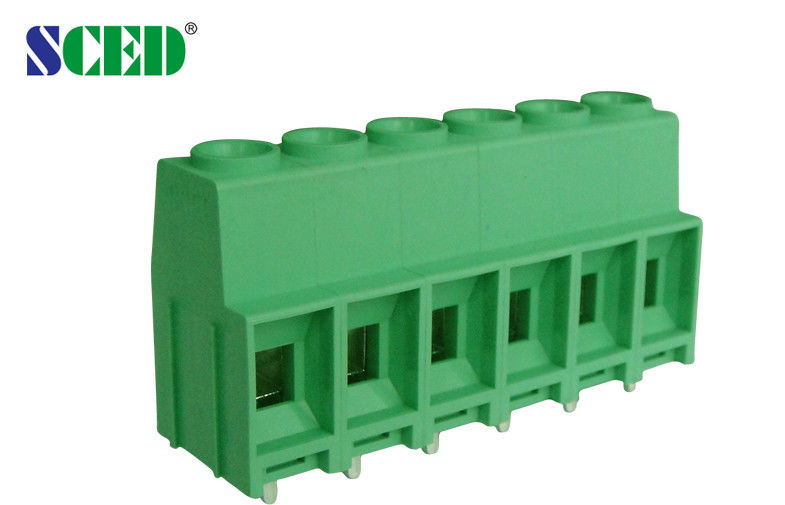

9.52mm PCB Screw Terminal Block 300V 30A 2 - 16 Poles Green Color 1
