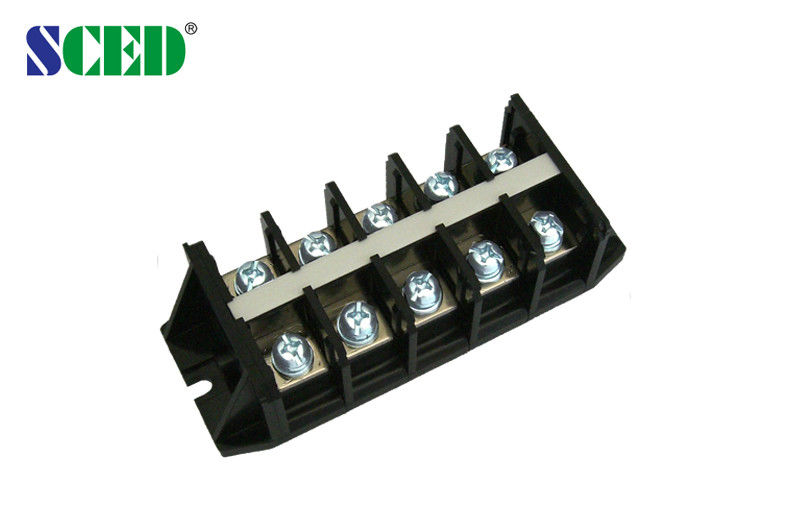

600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P

600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P

Ürünler - panel montaj terminal bloğu
  • Vurgulamak

    panel mount terminal block connector

    ,

    power distribution terminal

  • Tip
    Panel Montajlı Terminal Bloğu, Bariyer klemensleri, Güç klemensleri, Elektrik klemensleri
  • Saha
    9.50mm
  • Kişi sayısı
    2P-24P
  • Tel aralığı
    24-12
  • Nominal Gerilim
    600V
  • Nominal Akım
    20A
  • Renk
    Siyah
  • Uygulamalar
    PCB, Frekans Dönüştürücüler, Sunucu Sitesi, Switch, Güç Kaynağı, Elektrikli Aydınlatma, Endüstri Kon
  • Menşe yeri
    Shenzhen, Çin
  • Marka adı
    SCED
  • Sertifika
    UL, CE
  • Model numarası
    TR20-01-BM0
  • Min sipariş miktarı
    500
  • Fiyat
    Get latest price
  • Ambalaj bilgileri
    Standart İhracat Kartonu
  • Teslim süresi
    7-20 iş günü
  • Ödeme koşulları
    T/T
  • Yetenek temini
    Her ay 1KK direk

600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P

Fiyat Al Şimdi başvurun

600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:
600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


arameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 20

600 / 20



Wire Range                       AWG

24-12

24-12



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /10

1000 / 20

1000 / 20

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

2

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

8-9

Screw Torque                    mm

M3.5 /7-10



600V 20A High Current PCB Terminal Block Connectors Pitch 9.50mm 2P - 24P 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
