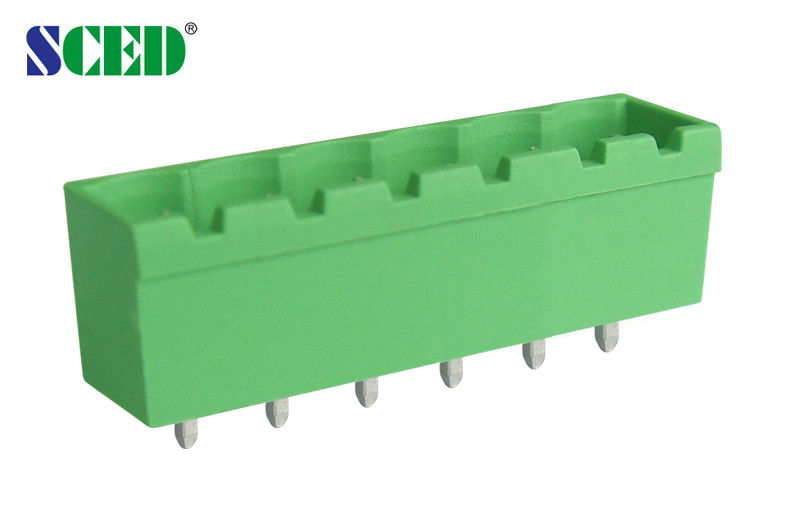

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

Ürünler - Terminal Bloğu Konnektörü
  • Vurgulamak

    plug in terminal block connector

    ,

    pcb terminal block connector

  • Tip
    Terminal Bloğu Konnektörü, Terminal Bloğu Konnektörleri, PCB Konnektörleri
  • Saha
    7.62mm
  • Kişi sayısı
    2P-16P
  • Nominal Gerilim
    300V
  • Nominal Akım
    18a
  • Renk
    Yeşil
  • Uygulamalar
    PCB, Frekans Dönüştürücüler, Sunucu Sitesi, Switch, Güç Kaynağı, Elektrikli Aydınlatma, Endüstri Kon
  • Seviyesi
    Tek seviye
  • Menşe yeri
    Shenzhen, Çin
  • Marka adı
    SCED
  • Sertifika
    UL, CE
  • Model numarası
    TP508H-76
  • Min sipariş miktarı
    500
  • Fiyat
    Get latest price
  • Ambalaj bilgileri
    Standart İhracat Kartonu
  • Teslim süresi
    7-20 iş günü
  • Ödeme koşulları
    T/T
  • Yetenek temini
    Her ay 1KK direk

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

Fiyat Al Şimdi başvurun

Detailed product Description:

Header, Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB, Power Supply

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply 0

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage                 KV

6

6

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.4

Pin Dimension                      mm

1.0*1.0

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
