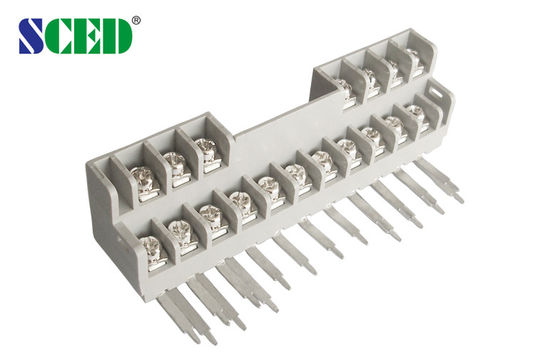

15A 18 x 2P 7.62mm Barrier Terminal Block Pitch Power 14 - 24 AWG

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15

300 / 10

Wire Range                       AWG

14-24

14-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm²

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel plated

Other Data

PCB Hole Diameter                  mm

φ1.7

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7
