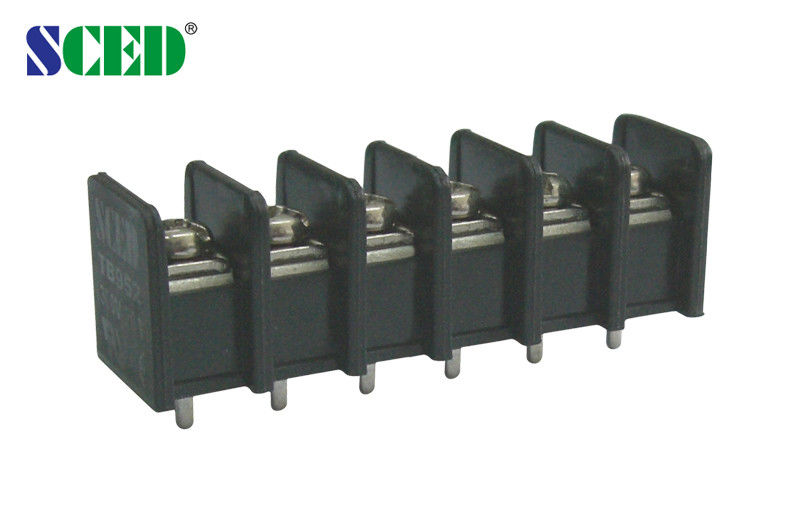

Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
-
Vurgulamak
Barrier PCB Terminal Blocks
,9.525mm Pitch PCB Terminal Blocks
,Brass Barrier Terminal Block
-
RenkSiyah
-
VidaM4
-
Tork10-13 lbf.in
-
PlastikPBT
-
Kutuplar2-24 Kutuplu
-
Akım20A
-
Gerilim300V
-
Saha9.525 mm.
-
Menşe yeriÇin
-
Marka adıSCED
-
SertifikaUL,CE,CUL,CQC and VDE etc.
-
Model numarasıTB952-00
-
Min sipariş miktarı1000 Adet/Adet
-
FiyatUSD 0.048-0.11
-
Ambalaj bilgileriStandart ihracat ambalaj kartonu veya müşterilerin talebine göre
-
Teslim süresi5-20 iş günü
-
Ödeme koşullarıL/C, T/T
-
Yetenek teminiAylık 1000000 Kutup/Kutup
Barrier Black 20A / 300V PCB Terminal Blocks M4 Screw 9.525mm Pitch UL94-V0 Brass
Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet
■Single Level
Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/20 | 300/10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.2 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 4/ 10-13 | ||
Competitive Advantage:
- Good quality and reasonable price
- Quick response and good after-sales service
- More than 1000 models for selection
- OEM and ODM servicce
Applications:
Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
