PA66 Green Terminal Block
,Brass Green Terminal Block
,5.08mm Spacing Center PCB Terminal Block
-
Saha5.08mm
-
KutuplarHerhangi Bir Kutup Mevcuttur
-
Volt300V
-
Akım10A
-
Yalıtım MalzemesiPA66
-
Yanmazlık SınıfıUL94 V0
-
Kelepçe KafesiPirinç
-
Yalıtım DirenciDC500V'nin üstünde, 500MΩ
-
Kontak Direnci8 mΩ'dan az
-
Nominal dalgalanma gerilimi1 dakika içinde anormal bir şey yok.
-
Menşe yeriGUANGDONG ÇİN
-
Marka adıSCED
-
SertifikaCE, UL, CUL, CQC, VDE etc.
-
Model numarasıTJ508-04
-
Min sipariş miktarı500 Adet/Adet
-
FiyatUSD 0.034-0.068 Per Pole
-
Ambalaj bilgileriPaketleme Detayları: Standart ihracat ambalaj kartonu veya müşterilerin talebine göre; Normalde, bir
-
Teslim süresi5-20 gün
-
Ödeme koşullarıT/T, L/C
-
Yetenek teminiAylık 1000000 Kutup/Kutup

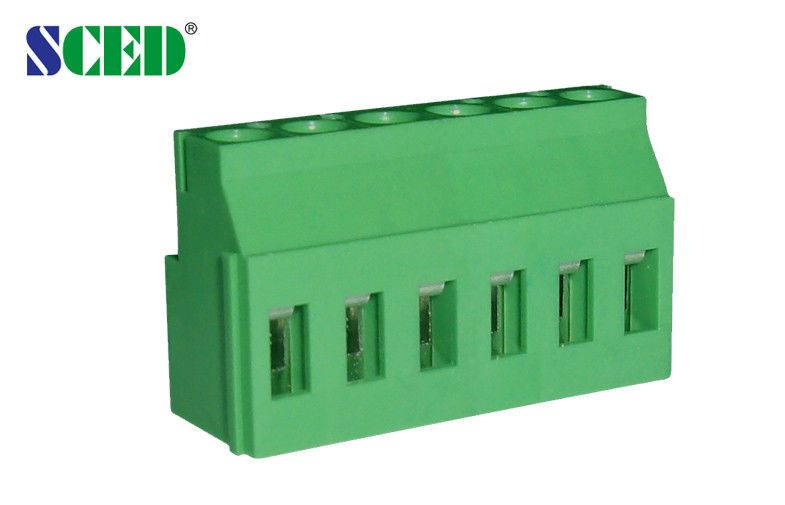

PA66 Brass PCB Green Terminal Block 5.08mm Spacing Center 300V 10A
Green PCB Terminal Block 5.08mm Spacing Center 300V 10A PA66 Brass
Detailed product Description:
Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
12-26 |
|
12-26 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
