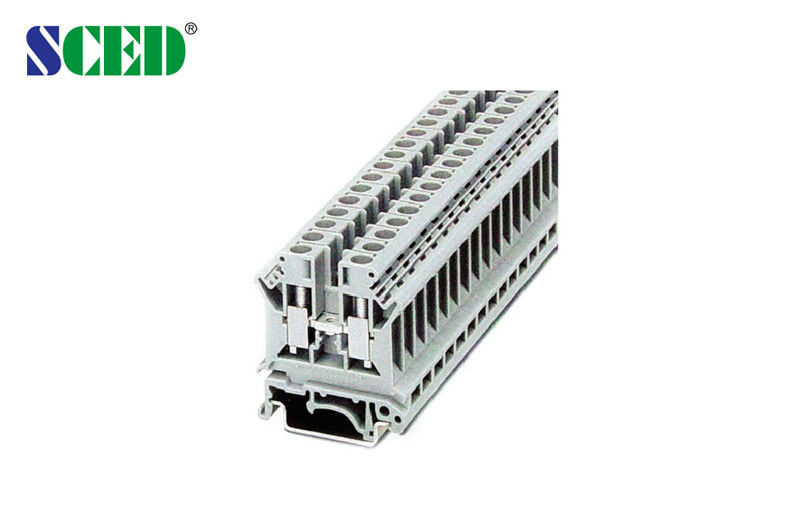

Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail
-
Vurgulamak
Right Angle Rail Mounted Terminal Blocks
,Width 8.2mm Rail Mounted Terminal Blocks
,Din Rail Right Angle Terminal Blocks
-
Akım50A
-
Gerilim600V
-
Telli girişDik açı
-
RenkGri
-
Terminal Genişliği8,2 mm
-
Kontak Direnci8 mΩ'dan az
-
Nominal dalgalanma gerilimi1 dakika içinde anormal bir şey yok.
-
Yanıcılık sınıfıUL94, V-0
-
Yalıtım DirenciDC500V'nin üstünde, 500MΩ
-
VidaM3
-
Menşe yeriGUANGDONG ÇİN
-
Marka adıSCED
-
SertifikaUL,CUL,CE, CQC,VDE etc.
-
Model numarasıTR-6N
-
Min sipariş miktarı500 Adet/Adet
-
FiyatUSD 0.169-0.338 Per Pole
-
Ambalaj bilgileriStandart Ana Karton Boyutu: 341 x 273 x 198 mm; Standart İç kutu boyutu: 168 x 134 x 47 mm.
-
Teslim süresi5-20 gün
-
Ödeme koşullarıL/C, T/T
-
Yetenek teminiAylık 1000000 Kutup/Kutup
Right Angle Rail Mounted Terminal Blocks 600V 50A Width 8.2mm Din Rail
UK Rail Mounted Terminal Blocks 600V 50A Terminal Width: 8.2mm Din Rail
Detailed product Description:
Terminal width: 8.2mm, 600V 50A, AWG:26-8, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-6N |
|
|
D-TR-3/16 |
|
|
FBI 10-8 Imax: 57A |
|
|
EB 10-8 Imax: 57A |
|
|
TS-K |
|
|
ATP-TR |
|
Zack Strip White |
ZB8 |
|
Screwdriver |
SZS 1.0×4.0 |
|
Rail Material |
aluminum |
|
Dimensions mm |
8.2/42.5/2 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
57 / 10 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand.
Ürünlerimiz tüm dünyada satılmaktadır. Ürünlerimizin tüm sürecinden emin olabilirsiniz.
