Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
-
Vurgulamak
Plastic Cover High Voltage Terminal Block
,High Voltage Terminal Block 40A
,13mm Barrier Terminal Block
-
Saha13 mm
-
RenkSiyah
-
Akım40A
-
Gerilim600V
-
Kutuplar2-12 kutuplu
-
Tel aralığı20-8 AWG
-
terminalPirinç
-
VidaM4
-
Nominal dalgalanma gerilimi1 dakika içinde anormal bir şey yok.
-
Kontak Direnci8 mΩ'dan az
-
Menşe yeriGUANGDONG ÇİN
-
Marka adıSCED
-
SertifikaUL,CE,CUL, CQC and VDE etc.
-
Model numarasıTB1300-00-C
-
Min sipariş miktarı1000 Adet/Adet
-
FiyatUSD 0.076-0.152 Per Pole
-
Ambalaj bilgileriStandart Ana Karton Boyutu: 341 x 273 x 198 mm; Standart İç kutu boyutu: 168 x 134 x 47 mm.
-
Teslim süresi5-20 iş günü
-
Ödeme koşullarıT/T, L/C
-
Yetenek teminiAylık 1000000 Kutup/Kutup
Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors
Detailed product Description:
Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

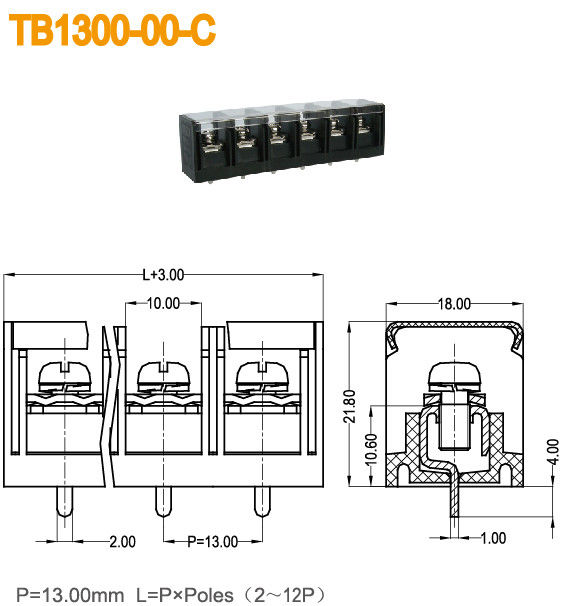

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
| Wire Range AWG | 20-8 | 20-8 | 20-8 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.5 | ||
| Stripping Length mm | 10-11 | ||
| Screw / Torque / lbf.in | M 4 / 10.6-13 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
