57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles UL Technical Data
-
Vurgulamak
10.16mm PCB Screw Terminal Block
,57A PCB Screw Terminal Block
,UL PCB Screw Terminal Block
-
Yalıtım MalzemesiPA66
-
Yanıcılık sınıfıUL94-V0
-
VidaM4
-
Tork10,6-13 lbf.inç
-
Kelepçe KafesiPirinç
-
Kutuplar2-16 kutup
-
Saha10,16 mm
-
Akım57A
-
Gerilim300V
-
Tel aralığı6-22 ag
-
Menşe yeriGuangdong, Çin
-
Marka adıSCED
-
SertifikaCE,UL,CUL,CQC and VDE etc.
-
Model numarasıTJ952-01
-
Min sipariş miktarı1000 Adet/Adet
-
FiyatUSD 0.114-0.228 PER POLE
-
Ambalaj bilgileriStandart Ana Karton Boyutu: 341 x 273 x 198 mm; Standart İç kutu boyutu: 168 x 134 x 47 mm.
-
Teslim süresi5-20 iş günü
-
Ödeme koşullarıL/C, T/T
-
Yetenek teminiAylık 1000000 Kutup/Kutup
57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles UL Technical Data

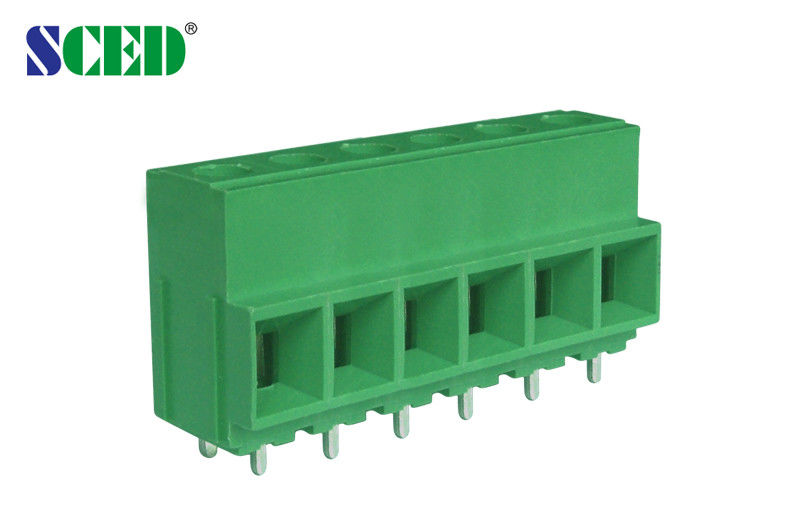

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles
Detailed product Description:
Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet:■Right angle wire inlet
Decks:■Single Deck; □Double decks; □Triple decks
Standard color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Euro terminal blocks are widely used in industry and automatic control, power, PCB, frequency conversion, electronics and so on.

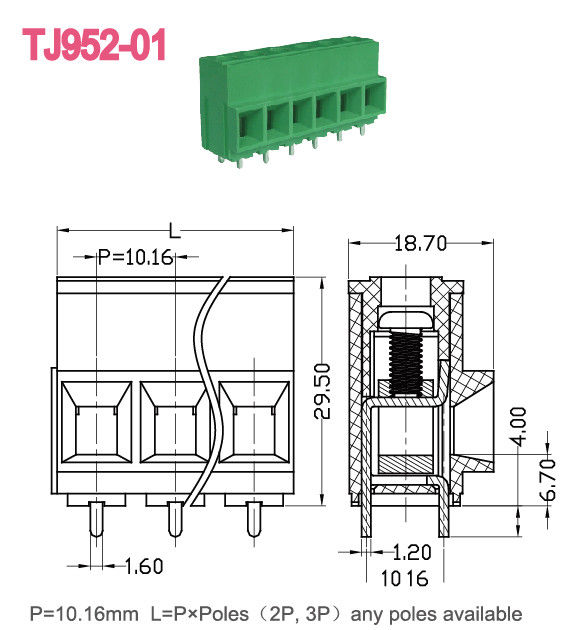

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/57 | 300/57 | |
| Wire Range AWG | 6-22 | 6-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 690 / 57 | 1000 / 57 | 1000 / 57 |
| Rated Surge Voltage KV | 8 | 8 | 8 |
| Rated Connecting Capacity mm2 | 10 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.4 | ||
| Stripping Length mm | 9-11 | ||
| Screw / Torque / lbf.in | M4 / 10.6-13 | ||
Competitive Advantage:
- Full range products for selection
- Flexible to design the exact part per customers’ demand
- Good service and quick response
- OEM and ODM service
- Stable good quality and competitive price
