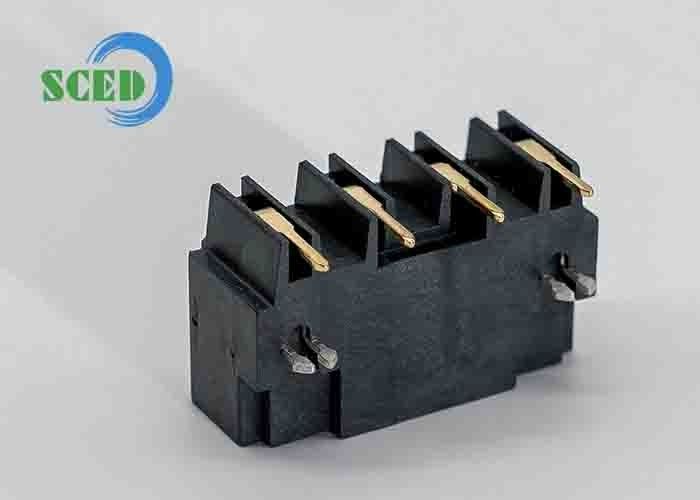

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

Detailed product Description:

Header, Male Sockets, Pitch: 7.5mm, 300V 16A, 4/6/7/9P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

This male header match with female plugs’ series: Contact Customer Service

Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.

Competitive Advantage:

1. Full range products for selection
2. Flexible to design the exact part per customers’ demand
3. High quality but competitive price

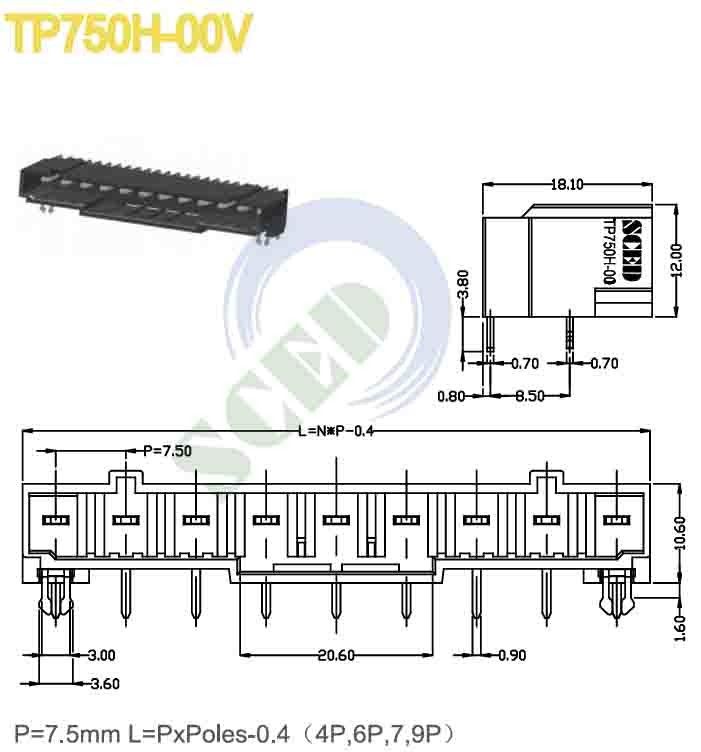

Parameter and Drawing Specifications:

Drawing Photo
