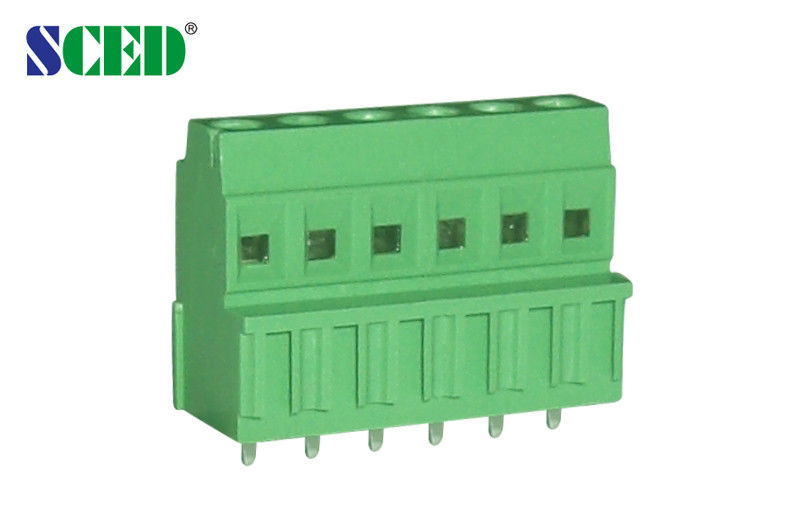

Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
-
Vurgulamak
screw type terminal block
,screw connection terminal block
-
UygulamalarPCB, Frekans Dönüştürücüler, Sunucu Sitesi, Switch, Güç Kaynağı, Elektrikli Aydınlatma, Endüstri Kon
-
RenkYeşil
-
Kişi sayısı2P-28P
-
Saha3,81 mm
-
Nominal Akım10A
-
Nominal Gerilim300V
-
Tel aralığı16-24 AWG
-
Maddi konutPA66
-
Menşe yeriShenzhen, Çin
-
Marka adıSCED
-
SertifikaUL, CE
-
Model numarasıTJ381-02
-
Min sipariş miktarı500-1000
-
FiyatGet latest price
-
Ambalaj bilgileriStandart İhracat Kartonu
-
Teslim süresi7-20 iş günü
-
Ödeme koşullarıT/T
-
Yetenek teminiHer ay 1,2KK direk
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 3.81mm 300V
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you
want.
Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 10 |
|
|
Wire Range AWG | 16-24 |
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 10 | 200 / 10 | 400 / 10 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.0 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.3 | ||
Stripping Length mm | 4-5 | ||
Screw / Torque / lbf.in | M2 / 1.8-2.0 | ||

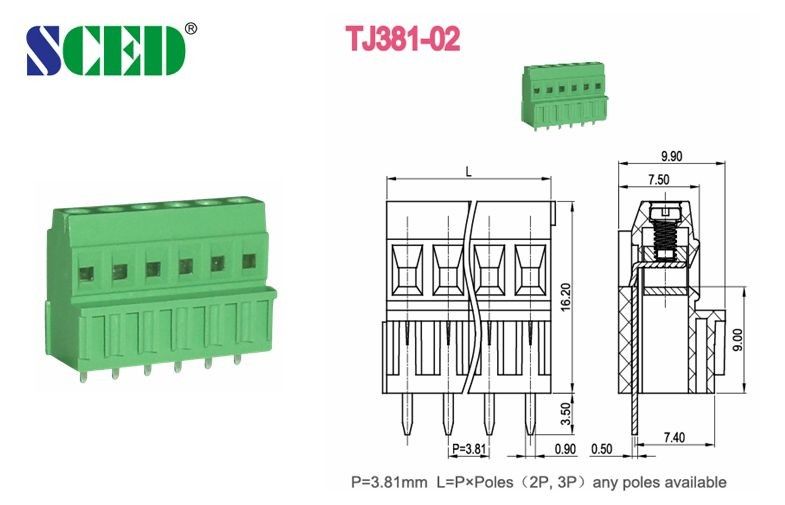

Drawing:
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
