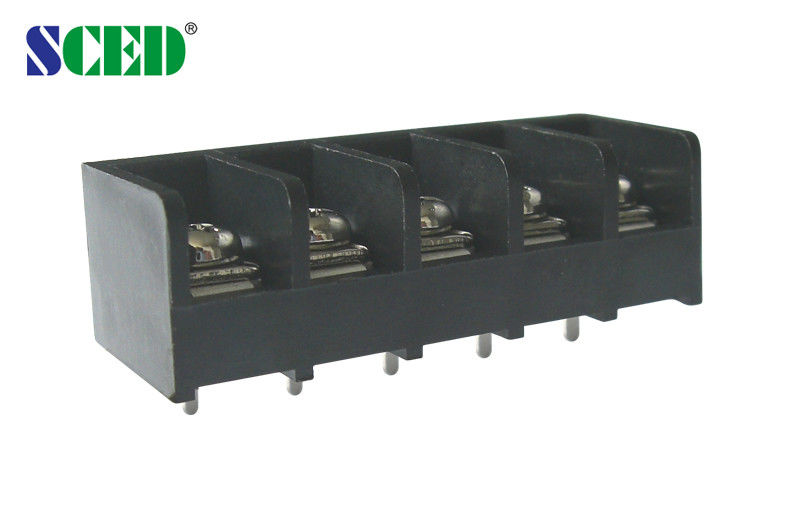

Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
-
Vurgulamak
barrier type terminal block
,pcb terminal blocks
-
Saha9,52 mm
-
Telli girişDik açı
-
Gerilim300V
-
Akım20A
-
RenkSiyah
-
PlastikPBT
-
Metal parçalarıPirinç
-
Nominal dalgalanma gerilimi1 dakika içinde anormal bir şey yok.
-
Yanıcılık sınıfıUL94, V-0
-
Yalıtım DirenciDC500V'nin üstünde, 500MΩ
-
Menşe yeriGuangdong, Çin
-
Marka adıSCED
-
SertifikaUL, CE
-
Model numarasıTB952-02
-
Min sipariş miktarı500 Adet/Adet
-
FiyatUSD 0.048-0.088 PER Pole
-
Ambalaj bilgileriStandart Ana Karton Boyutu: 341 x 273 x 198 mm; Standart İç kutu boyutu: 168 x 134 x 47 mm
-
Teslim süresi5-20 iş günü
-
Ödeme koşullarıL/C, T/T
-
Yetenek teminiAylık 1000000 Kutup/Kutup
Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet
Detailed product Description:
Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

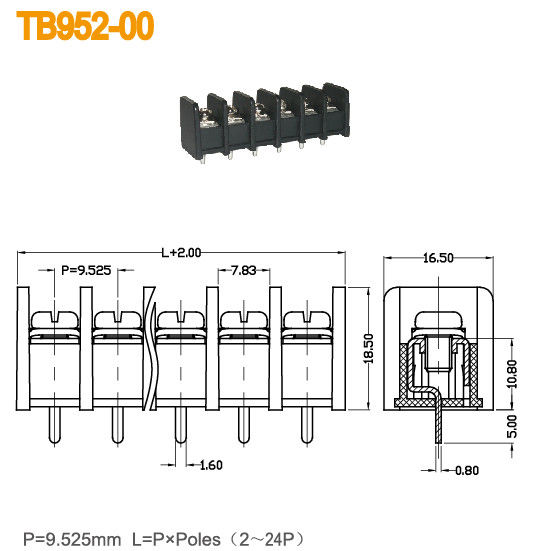

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 20 | 300 / 10 | |
| Wire Range AWG | 12-22 | 12-22 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 800 / 32 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Rated Connecting Capacity mm2 | 4 | ||
| Material | |||
| Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
| Terminal / Plating | Brass /Tin Plated | ||
| Screw / Plating | Steel / Nickel Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ2.1 | ||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | M 3.5 / 7-10 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
